- Inclined transport
- Helps to minimize the area of the conveyor system
- The same conveyor can be used on a line with different angles
- Less spillage of transported goods
- For a wide range of applications and transport volumes
Product Catalog
Inclined Conveyor (SUNLINE ™)
Inclined conveyors (SUNLINE™) are an efficient solution for transporting bulk materials and goods in industries such as mining, agriculture and construction.
Features
– Inclined conveying for food, especially in powder form or in bulk
– Inclined conveying for raw materials, components
– Material extraction from hoppers

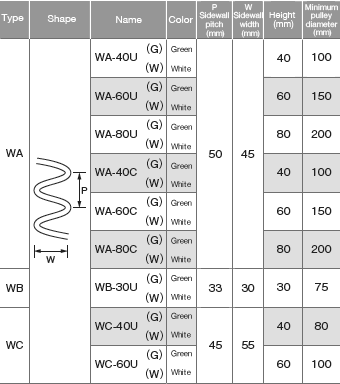

Sidewall Standard Specifications

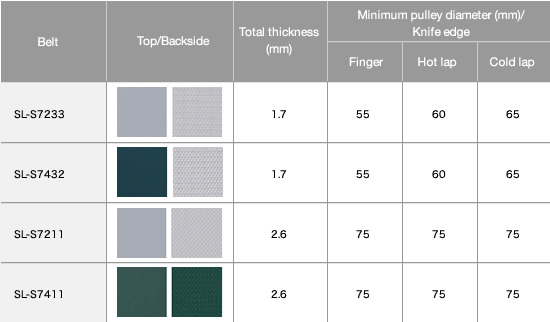

Standard combinations

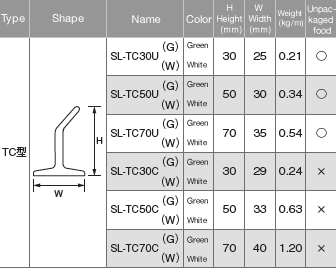

Cleat Standard Specifications
※The gap tolerance in the sidewall and cleat dimension is 0 ~ 4mm
※Standard cleat pitch: 150mm, 300mm, 400mm, 500mm(Other cleat pitches can be manufactured in intervals of 100 ~ 1000mm)
※If required sidewall height is not standard, please contact us.

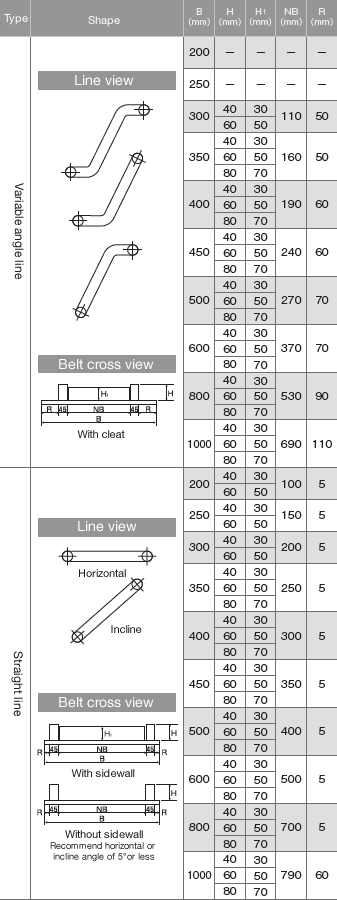

※We can manufacture 5mm and at 10mm intervals from 10mm to 100mm for free zone R. Variable angle line R dimension should be calculated by R ≥ 0.1 x (B+H). Round up for less than 10mm.
